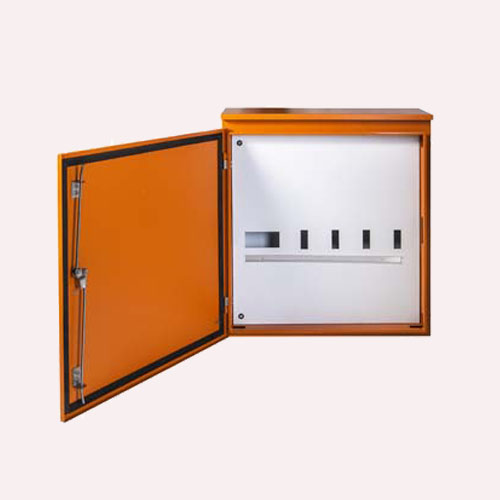

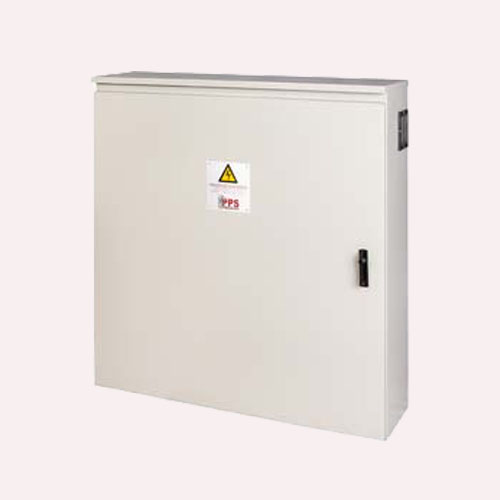

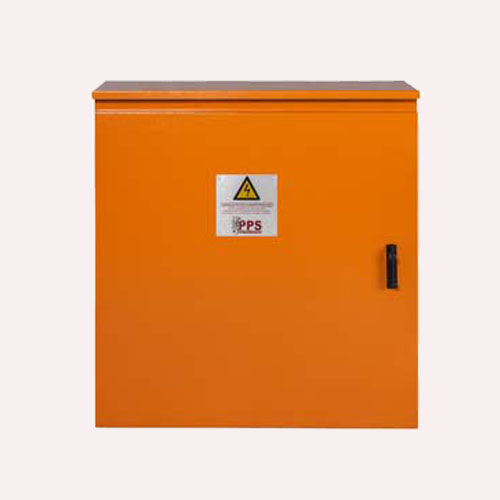

Transformer Distribution Enclosures
Mounted to the H-frame below the transformer to protect the LV network supply lines. Usually fitted with street light control and 4 to 6 large-frame MCBs. Metering is often included, depending on the requirement and application.
Typically manufactured from 3CR12. Supplied with heavy-duty mounting brackets.
SHARE
TYPES AND SPECIFICATIONS
| Transformer Distribution Enclosures | ||||
|---|---|---|---|---|
| CODE | HEIGHT | WIDTH | DEPTH | PRODUCT DESCRIPTION |
| TRSF4 | 800 | 800 | 250 | POLE MOUNTED TRANSFORMER BOX - 4 WAY |
| TRSF6 | 1000 | 1000 | 250 | POLE MOUNTED TRANSFORMER BOX - 6 WAY |
| IPDEEME | 1070 | 1010 | 350 | POLE MOUNTED SECURE LV DIST BOX - 6 WAY |
