3CR12 Distribution Kiosks

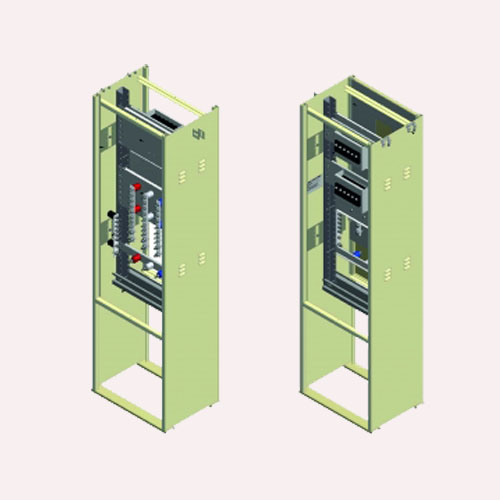

Known as “The Stubby” these free-standing reticulation boxes are of the standard design used by most electrical utilities. Typically fitted with a busbar assembly on the one side, and the distribution miniature circuit breakers (MCBs) on the other.
The standard format has a sliding door at the front and back that slides out upwards after the flat or pitched roof has been unlocked.
Can be fitted with either a gland plate or Unistrut for cable termination. All PPS 3CR12 distribution kiosks are fully ventilated and vermin proofed. Rated at IP55.
Designed to be planted up to 600 mm in the ground, but a plinth-mount version is also available.
SHARE
TYPES AND SPECIFICATIONS

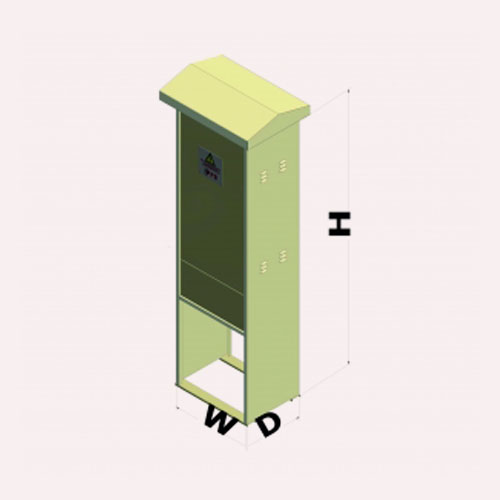

3CR12 Distribution Kiosks | ||||
---|---|---|---|---|
CODE | HEIGHT | WIDTH | DEPTH | PRODUCT DESCRIPTION |
DK3W | 1600 | 250 | 350 | DISTRIBUTION KIOSK 3WAY (1 X MCCB & 3 X 1P MCB) |
DK6W | 1600 | 250 | 350 | DISTRIBUTION KIOSK 6WAY (1 X MCCB & 6 X 1P MCB) |
DK9W | 1600 | 250 | 350 | DISTRIBUTION KIOSK 9WAY (1 X MCCB & 9 X 1P MCB) |
DK12W | 1600 | 250 | 350 | DISTRIBUTION KIOSK 12WAY (1 X MCCB & 12 X 1P MCB) |
DK18W | 1600 | 460 | 350 | DISTRIBUTION KIOSK 18WAY (1 X MCCB & 18 X 1P MCB) |
DK24W | 1600 | 460 | 350 | DISTRIBUTION KIOSK 24WAY (1 X MCCB & 24 X 1P MCB) |
