3CR12 Metering Kiosks

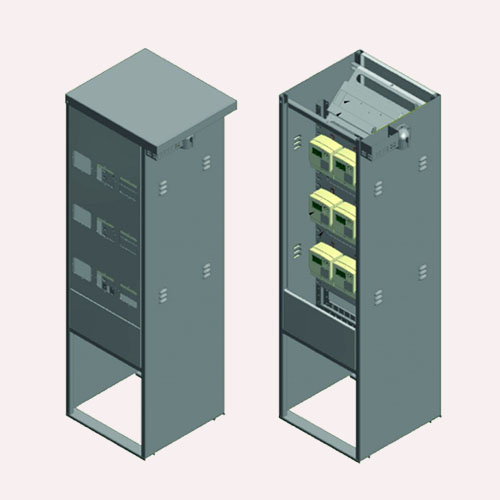

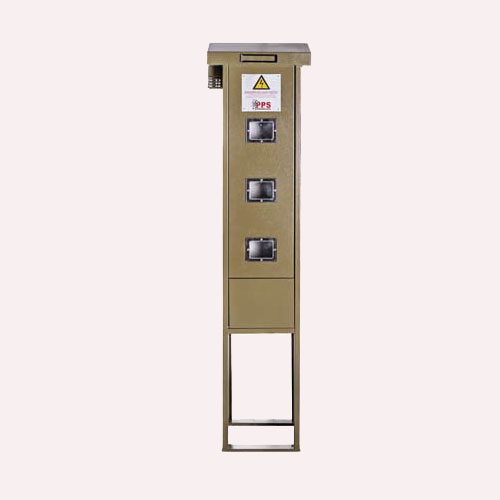

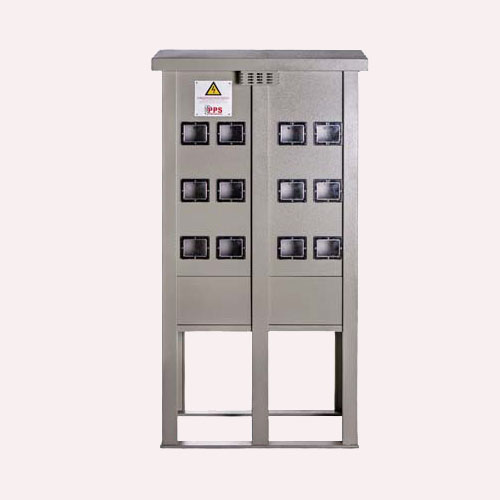

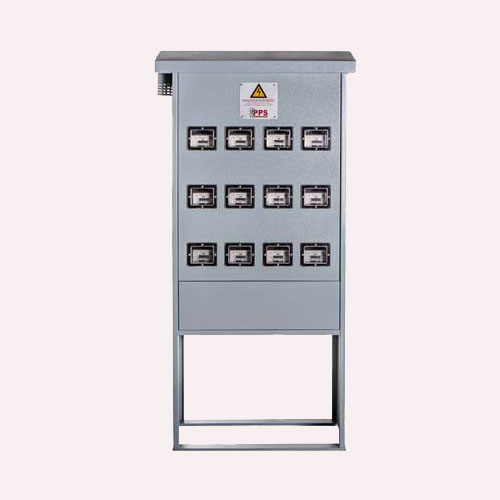

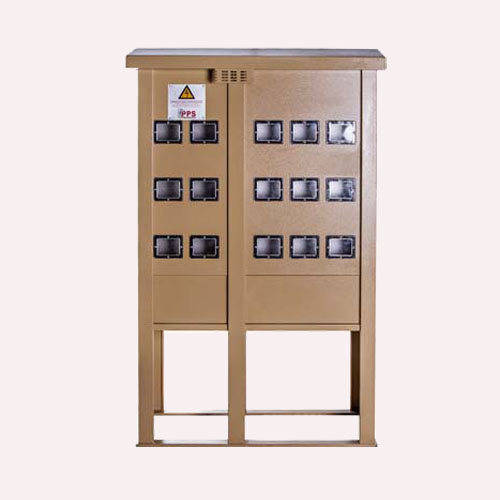

The PPS metering kiosk range is for both single-phase and three-phase meter applications. These stainless steel boxes can accommodate up to 24 single-phase meters, although such high capacity is rarely required.
All PPS metering kiosks make provision for one or two main supply isolators or MCBs on the supply side (busbar side) of the kiosk. The meter kiosks come complete with their own metal plinths, which can be either planted in the ground or mounted to a concrete plinth. A kiosk without such a plinth is optional.
The MCBs are usually mounted on the opposite side of the kiosk to that of the meters. Only the toggle of the MCB protrudes through the faceplate, which protects the busbar.
SHARE
TYPES AND SPECIFICATIONS
| 3CR12 Metering Kiosks | ||||
|---|---|---|---|---|
| CODE | HEIGHT | WIDTH | DEPTH | PRODUCT DESCRIPTION |
| MK4BB | 1600 | 330 | 300 | BOWLER STUBBY 4WAY C/W LIFT OFF SHROUD - ACCOMODATES 1 X MCCB, 4 X 1P MCB & 4 X 1P BS METERS |
| MK6BB | 1600 | 330 | 300 | BOWLER STUBBY 6WAY C/W LIFT OFF SHROUD - ACCOMODATES 1 X MCCB, 6 X 1P MCB & 6 X 1P BS METERS |
| MK6D | 1200 | 520 | 450 | METER KIOSK DOUBLE DOOR 6WAY - ACCOMODATES 1 X MCCB,6 X MCB & 6 X 1P DIN MOUNT METERS |
| MK9D | 1200 | 680 | 450 | METER KIOSK DOUBLE DOOR 9WAY - ACCOMODATES 1 X MCCB,9 X MCB & 9 X 1P DIN MOUNT METERS |
| MK12D | 1200 | 850 | 450 | METER KIOSK DOUBLE DOOR 12WAY - ACCOMODATES 1 X MCCB,12 X MCB & 12 X 1P DIN MOUNT METERS |
| MK3 | 1600 | 300 | 350 | METERING KIOSK 3WAY C/W SLIDING BACK/FRONT PANELS - ACCOMODATES 3 X 1P MCB & 3 X BS METERS |
| MK6 | 1600 | 390 | 350 | METERING KIOSK 6WAY C/W SLIDING BACK/FRONT PANELS - ACCOMODATES 6 X 1P MCB & 6 X BS METERS |
| MK9 | 1600 | 540 | 350 | METERING KIOSK 9WAY C/W SLIDING BACK/FRONT PANELS - ACCOMODATES 9 X 1P MCB & 9 X BS METERS |
| MK12 | 1600 | 690 | 350 | METERING KIOSK 12WAY C/W SLIDING BACK/FRONT PANELS - ACCOMODATES 12 X 1P MCB & 12 X BS METERS |
| MK18 | 1600 | 800 | 400 | METERING KIOSK 18WAY C/W SLIDING BACK/FRONT PANELS - ACCOMODATES 18 X 1P MCB & 18 X BS METERS |
| MK24 | 1600 | 950 | 400 | METERING KIOSK 24WAY C/W SLIDING BACK/FRONT PANELS - ACCOMODATES 24 X 1P MCB & 24 X BS METERS |
| MK2W3P | 1600 | 390 | 400 | METERING KIOSK 2WAY C/W SLIDING BACK/FRONT PANELS - ACCOMODATES 2 X 3P MCB & 2 X 3P BS METERS |
| MK4W3P | 1600 | 540 | 400 | METERING KIOSK 4WAY C/W SLIDING BACK/FRONT PANELS - ACCOMODATES 4 X 3P MCB & 4 X 3P BS METERS |
| MK6W3P | 1600 | 690 | 400 | METERING KIOSK 6WAY C/W SLIDING BACK/FRONT PANELS - ACCOMODATES 6 X 3P MCB & 6 X 3P BS METERS |
| MK10W3P | 1600 | 950 | 400 | METERING KIOSK 10WAY C/W SLIDING BACK/FRONT PANELS - ACCOMODATES 10 X 3P MCB & 10 X 3P BS METERS |
