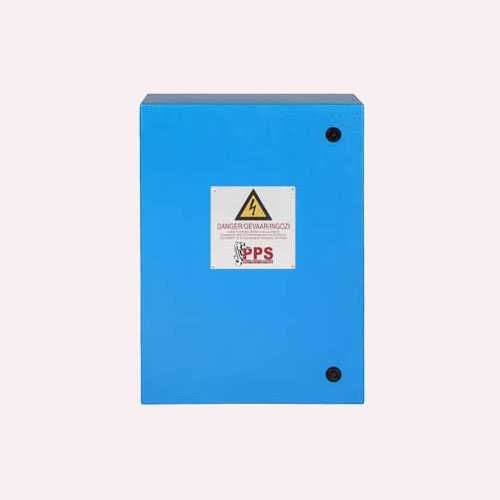

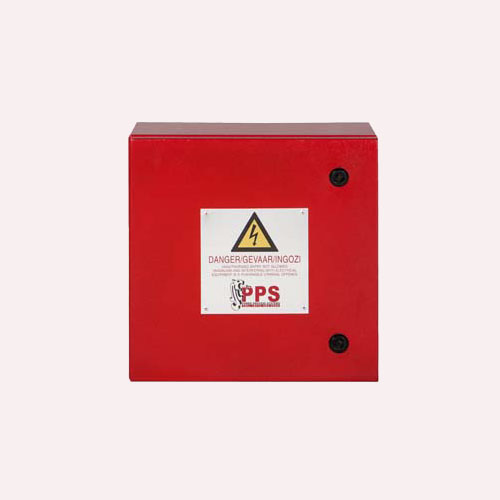

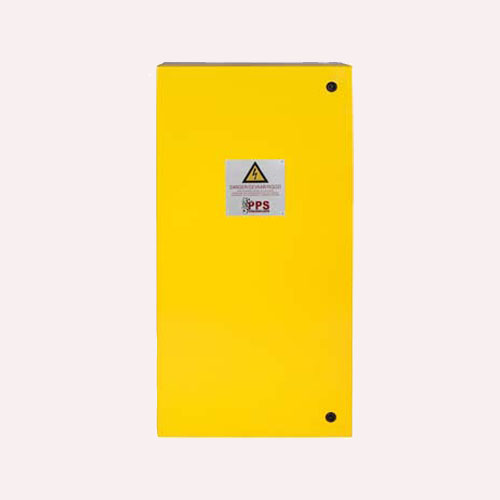

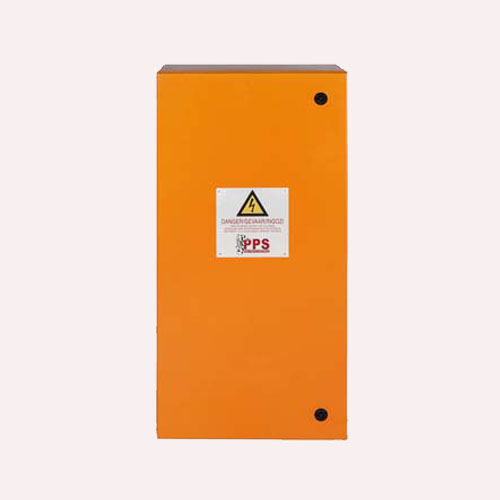

NEMA Range
These are rugged, industrial quality and affordable. Built in 304 stainless steel or 3CR12 and rated up to IP 65. Flat or grid type chassis available on request.
SHARE
TYPES AND SPECIFICATIONS
| NEMA Range | ||||
|---|---|---|---|---|

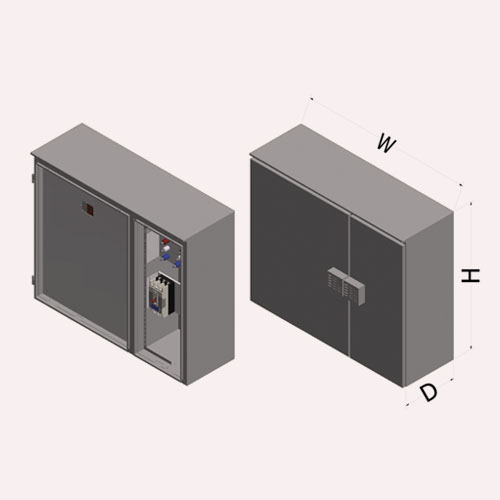

| CODE | HEIGHT | WIDTH | DEPTH | PRODUCT DESCRIPTION |
| NEMA1 | 200 | 200 | 170 | SURFACE ENCLOSURE (IP54) 200H X 200W X 170D |
| NEMA2 | 250 | 200 | 170 | SURFACE ENCLOSURE (IP54) 250H X 200W X 170D |
| NEMA3 | 250 | 250 | 170 | SURFACE ENCLOSURE (IP54) 250H X 250W X 170D |
| NEMA4 | 300 | 300 | 170 | SURFACE ENCLOSURE (IP54) 300H X 300W X 170D |
| NEMA5 | 350 | 350 | 170 | SURFACE ENCLOSURE (IP54) 350H X 350W X 170D |
| NEMA6 | 450 | 300 | 220 | SURFACE ENCLOSURE (IP54) 450H X 300W X 220D |
| NEMA7 | 500 | 300 | 220 | SURFACE ENCLOSURE (IP54) 500H X 300W X 220D |
| NEMA8 | 550 | 400 | 220 | SURFACE ENCLOSURE (IP54) 550H X 400W X 220D |
| NEMA9 | 650 | 450 | 270 | SURFACE ENCLOSURE (IP54) 650H X 450W X 270D |
| NEMA10 | 750 | 550 | 270 | SURFACE ENCLOSURE (IP54) 750H X 550W X 270D |
| NEMA11 | 800 | 400 | 270 | SURFACE ENCLOSURE (IP54) 800H X 400W X 270D |
| NEMA12 | 950 | 700 | 270 | SURFACE ENCLOSURE (IP54) 950H X 700W X 270D |
| NEMA13 | 1000 | 500 | 270 | SURFACE ENCLOSURE (IP54) 1000H X 500W X 270D |
| NEMA14 | 1150 | 850 | 270 | SURFACE ENCLOSURE (IP54) 1150H X 850W X 270D |
| NEMA15 | 850 | 600 | 450 | SURFACE ENCLOSURE (IP54) 850H X 600W X 450D |
| NEMA16 | 1000 | 1000 | 300 | SURFACE ENCLOSURE (IP54) 1000H X 1000W X 300D |
| NEMA1A2 | 200 | 200 | 170 | SURFACE ENCLOSURE 3CR12 (IP54) 200H X 200W X 170D |
| NEMA2A2 | 250 | 200 | 170 | SURFACE ENCLOSURE 3CR12 (IP54) 250H X 200W X 170D |
| NEMA3A2 | 250 | 250 | 170 | SURFACE ENCLOSURE 3CR12 (IP54) 250H X 250W X 170D |
| NEMA4A2 | 300 | 300 | 170 | SURFACE ENCLOSURE 3CR12 (IP54) 300H X 300W X 170D |
| NEMA5A2 | 350 | 350 | 170 | SURFACE ENCLOSURE 3CR12 (IP54) 350H X 350W X 170D |
| NEMA6A2 | 450 | 300 | 220 | SURFACE ENCLOSURE 3CR12 (IP54) 450H X 300W X 220D |
| NEMA7A2 | 500 | 300 | 220 | SURFACE ENCLOSURE 3CR12 (IP54) 500H X 300W X 220D |
| NEMA8A2 | 550 | 400 | 220 | SURFACE ENCLOSURE 3CR12 (IP54) 550H X 400W X 220D |
| NEMA9A2 | 650 | 450 | 270 | SURFACE ENCLOSURE 3CR12 (IP54) 650H X 450W X 270D |
| NEMA10A2 | 750 | 550 | 270 | SURFACE ENCLOSURE 3CR12 (IP54) 750H X 550W X 270D |
| NEMA11A2 | 800 | 400 | 270 | SURFACE ENCLOSURE 3CR12 (IP54) 800H X 400W X 270D |
| NEMA12A2 | 950 | 700 | 270 | SURFACE ENCLOSURE 3CR12 (IP54) 950H X 700W X 270D |
| NEMA13A2 | 1000 | 500 | 270 | SURFACE ENCLOSURE 3CR12(IP54) 1000H X 500W X 270D |
| NEMA14A2 | 1150 | 850 | 270 | SURFACE ENCLOSURE 3CR12(IP54) 1150H X 850W X 270D |
| NEMA15A2 | 850 | 600 | 450 | SURFACE ENCLOSURE 3CR12(IP54) 850H X 600W X 450D |
| NEMA16A2 | 1000 | 1000 | 300 | SURFACE ENCLOSURE 3CR12(IP54) 1000H X 1000W X 300D |
