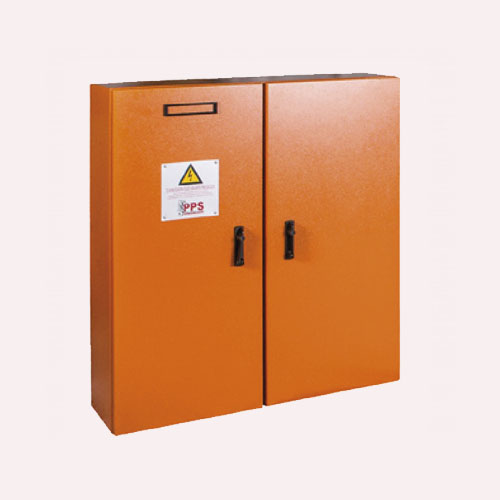

Double-Door Surface-Mount Distribution Enclosure Range

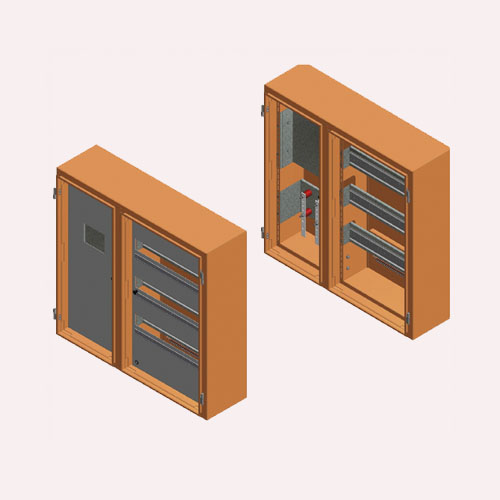

These larger enclosures allow maximum space for ease of installation. Up to 600 A. Versatile – can accommodate metering as well as distribution. Available in mild steel, 3CR12 or stainless steel.
Busbars are pre-fitted, complete with a polycarbonate safety cover. A full chassis behind the architrave can be provided on request.
Not fitted with gland plates, but bolt-on gland plates can be provided if required. Rated up to IP65 (with no gland plate).
SHARE
TYPES AND SPECIFICATIONS
| Double-Door Surface-Mount Distribution Enclosure Range | ||||
|---|---|---|---|---|

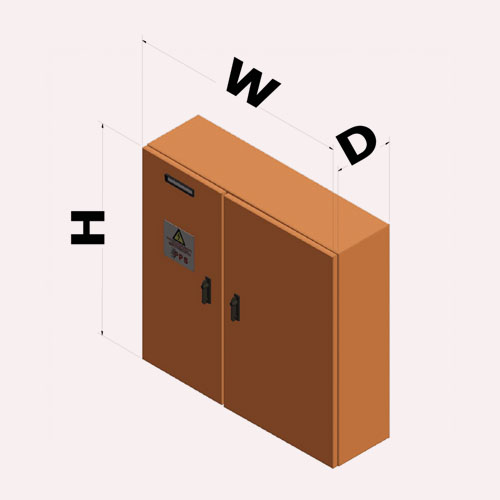

| CODE | HEIGHT | WIDTH | DEPTH | PRODUCT DESCRIPTION |
| DOUBLE DOOR - DIN MOUNT MCB's | ||||
| SMD33D | 900 | 760 | 250 | SURFACE DISTRIBUTION D-DOOR DB - 1 X L/F MCCB & 33WAY 1P DIN MCB's |
| SMD42D | 900 | 810 | 250 | SURFACE DISTRIBUTION D-DOOR DB - 1 X L/F MCCB & 42WAY 1P DIN MCB'S |
| SMD63D | 900 | 940 | 250 | SURFACE DISTRIBUTION D-DOOR DB - 1 X L/F MCCB & 63WAY 1P DIN MCB'S |
| SMD84D | 1100 | 940 | 250 | SURFACE DISTRIBUTION D-DOOR DB - 1 X L/F MCCB & 84WAY 1P DIN MCB'S |
| DOUBLE DOOR - SAMITE MOUNT MCB's | ||||
| SMD48S | 900 | 760 | 250 | SURFACE DISTRIBUTION D-DOOR DB - 1 X L/F MCCB & 48WAY 1P 2.5KA SAMITE MCB'S |
| SMD60S | 900 | 810 | 250 | SURFACE DISTRIBUTION D-DOOR DB - 1 X L/F MCCB & 60WAY 1P 2.5KA SAMITE MCB'S |
| SMD90S | 900 | 940 | 250 | SURFACE DISTRIBUTION D-DOOR DB - 1 X L/F MCCB & 90WAY 1P 2.5KA SAMITE MCB'S |
| SMD120S | 1100 | 940 | 250 | SURFACE DISTRIBUTION D-DOOR DB - 1 X L/F MCCB & 120WAY 1P 2.5KA SAMITE MCB'S |
| DOUBLE DOOR METERING - BS FOOTPRINT | ||||
| SMDD3M | 900 | 850 | 250 | SURFACE METERING 3WAY D-DOOR DB - 1 X L/F MCCB & 3 X 1P 5KA SAMITE MCB'S & 3 X1P BS METERS |
| SMDD6M | 900 | 940 | 250 | SURFACE METERING 6WAY D-DOOR DB - 1 X L/F MCCB & 6 X 1P 5KA SAMITE MCB'S & 6 X1P BS METERS |
| SMDD9M | 900 | 1050 | 250 | SURFACE METERING 9WAY D-DOOR DB - 1 X L/F MCCB & 9 X 1P 5KA SAMITE MCB'S & 9 X1P BS METERS |
| SMDD16M | 1100 | 1100 | 250 | SURFACE METERING 16WAY D-DOOR DB - 1 X L/F MCCB & 16 X 1P 5KA SAMITE MCB'S & 16 X1P BS METERS |
