AV-CAB: ANTI Vandal Copper Aluminium Busbar

AV-CAB: ANTI Vandal Copper Aluminium Busbar

AV-CAB is a purpose-engineered, anti-vandal copper aluminium busbar solution. AV-CAB is a next-generation conductor that combines the conductivity of copper with the affordability and lightness of aluminium - and most critically, offers no resale value as pure copper to thieves.

AV-CAB is designed to replace traditional copper busbars in electrical distribution panels, substations, kiosks, and industrial switchboards. AV-CAB is compatible with Existing infrastructure.

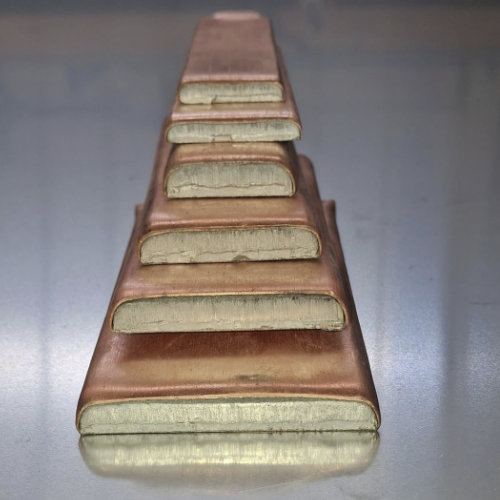

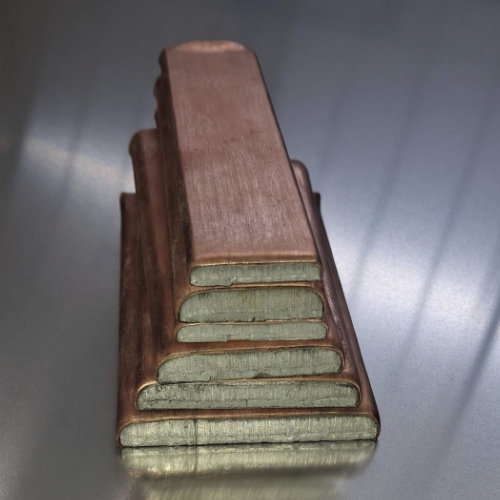

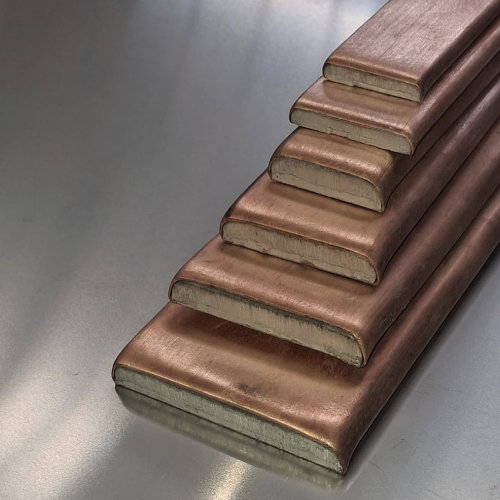

AV-CAB is a high electrical performance solid bar product where 20-30% copper by weight is permanently fused to an aluminium core. This is not a surface plating - the materials are metallurgically bonded through heat and pressure to form a single, inseparable alloy.

AV-CAB is impossible to strip, melt down, or separate like traditional copper busbars - meaning it holds no illicit scrap value, discouraging theft and vandalism.

Property	AV-CAB Specification
Composition	20–30% Copper fused onto 70–80% Aluminium core
Format	Solid bar / busbar
Theft deterrence	No resale value as copper due to fused bimetallic bond
Electrical conductivity	Excellent surface conductivity for AC applications
Mechanical durability	Stronger than aluminium, lighter than copper
Installation compatibility	Compatible with Cu/Al-rated terminals and supports
Applications	Kiosks, DBs, substation panels, LV panels

Available Sizes and Current Ratings

AV-CAB Busbar Size (mm)	Rated Current (A)
25 x 6	300A
30 x 6	360A
40 x 5	400A
30 x 10	600A
40 x 10	800A
50 x 10	1000A
60 x 10	1200A
